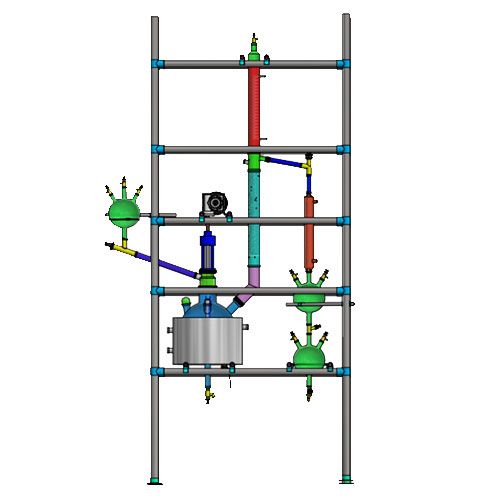

Reaction Cum Distillation Assembly
Home - Industrial Glass Components - Reaction Cum Distillation Assembly
| Available size | 50 LTR, 100 LTR, 200 LTR, 300 LTR |
| Working temperature | Up to 200°c |
| Flask Nozzles | Stirring, Thermometer pocket, Dip pipe, Vapour line Man hole |
| Motor | Flame Proof Motor ISI marked 1400 RPM with imported 192 RPM gear box |
| Stirrer | Glass Stirrer with Teflon blade/SS rod with PTFE lined (anchor, PBT, half-moon shape) |
| Bath | Mild steel/Stainless steel Water/Oil Fitted with internal cooling coils electric heaters (FLP, NON FLP) Digital Controller (FLP, NON FLP) |
| Vapour line | Column, Reflux Divider, Condenser |
| Flask | Addition flask available with graduation marking, Receiver flask |
| Valves | Drain Valve, Vent Valve, Line Valve, Angle Valve, Flush Bottom Valve |
| Couplings | CI flange/SS flange with nut & bolts PTFE O-ring |
| Structure | GI tubular supporting structure/SS tubular supporting structure |
